The Cost of Skipping Pre-Construction Soil Stabilization

Most foundation problems don’t announce themselves at the time of construction — they show up years later as diagonal cracks in drywall, sticking doors and windows, uneven floors, and bowing walls. By that point, remediation is expensive, disruptive, and often requires lifting the structure entirely. Pre-construction foundation support addresses the underlying soil problem before concrete is ever poured, making future settlement a non-issue from day one.

According to the Federal Emergency Management Agency (FEMA), soil instability and improper site preparation are among the leading contributors to structural damage in residential construction. Getting it right before the pour is always more cost-effective than fixing it after.

Pre-Construction vs. Post-Construction Foundation Repair

There’s an important distinction between pre-construction pier installation and post-construction foundation repair. Post-construction repair involves lifting an already-settled structure — a costly, complex process that can still leave residual damage. Pre-construction pier installation happens in the footing trench before the foundation is poured, permanently anchoring the structure to bedrock before any load is applied. It’s prevention rather than cure, and the cost difference is significant.

Correct Position: Concentric Loading Under the Wall

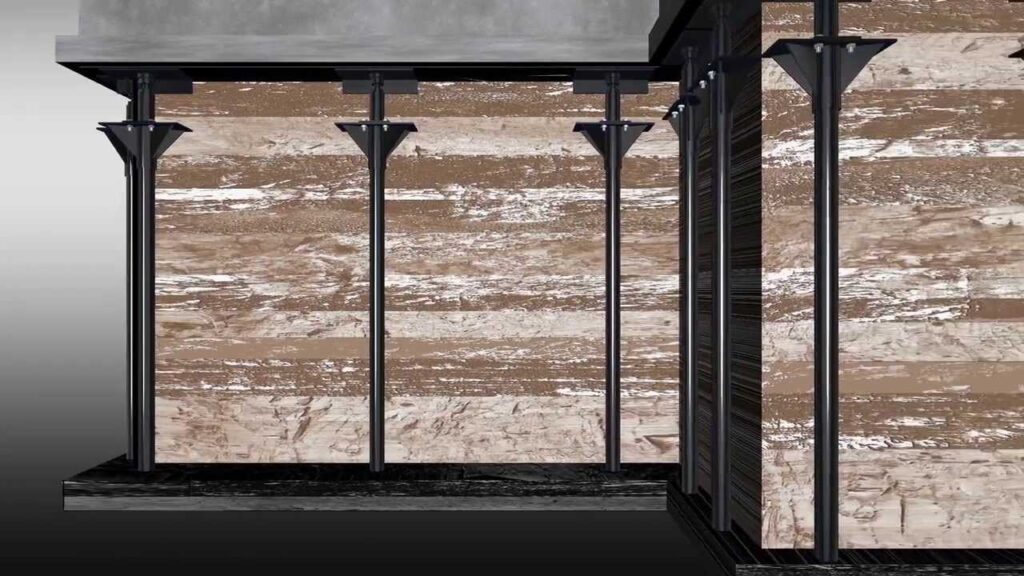

One of the most critical engineering advantages of the Stabil-Loc system is where the pier is positioned. Traditional eccentric loading systems install the pier from outside the footing using a bracket — an approach developed in 1917 that places the load off-center, which can eventually bend or break the pier or improperly raise the foundation. Stabil-Loc solves this by positioning the double-walled, heat-extruded steel tube directly under the center line of the wall being supported, maintaining true concentric loading throughout installation and for the life of the structure. Stabil-loc

Driven to Bedrock — Not Just Stable Soil

The installation machine drives the piers with 82,000 pounds of impact force, sending them all the way to solid rock — not simply to undisturbed soil, as helical piers rely on. This is a critical distinction: a pier that terminates in soil can still shift as moisture and conditions change. A pier driven to bedrock cannot. Stabil-Loc

How Deep Do the Piers Go?

Depth varies by site conditions, but the goal is always the same: bedrock or stable strata. The ICC-compliant system consists of a 30-inch starter segment, 30-inch interlocking segments, and is terminated with a 100-square-inch gusseted top bearing cap. Once the piers are set, reinforcing steel is placed on top and the concrete foundation is poured — creating a fully integrated, permanent anchoring system. Stabil-Loc

The Adjustable Shimblock Advantage

Traditional pier systems require over-lifting the structure to insert shims, which introduces risk of additional damage to the building above. The Stabil-Loc system’s patented adjustable shimblock eliminates the need for over-lifting entirely — a meaningful protection for the structure and for everyone involved in the project.
